The Victorian and Edwardian neighbourhoods of Bristol: from the elevated terraces of Clifton and Redland to the dense urban grain of Cotham and Southville, represent more than a storied architectural past; they are a vital form of living infrastructure. To preserve these houses, we must acknowledge that their continued relevance depends upon their adaptation to modern climate imperatives.
At Buju Architects, our approach to retrofitting combines an appreciation for heritage with advanced building physics. Retrofitting is not just a technical upgrade; it is the essential bridge between heritage conservation and 21st-century thermal performance.

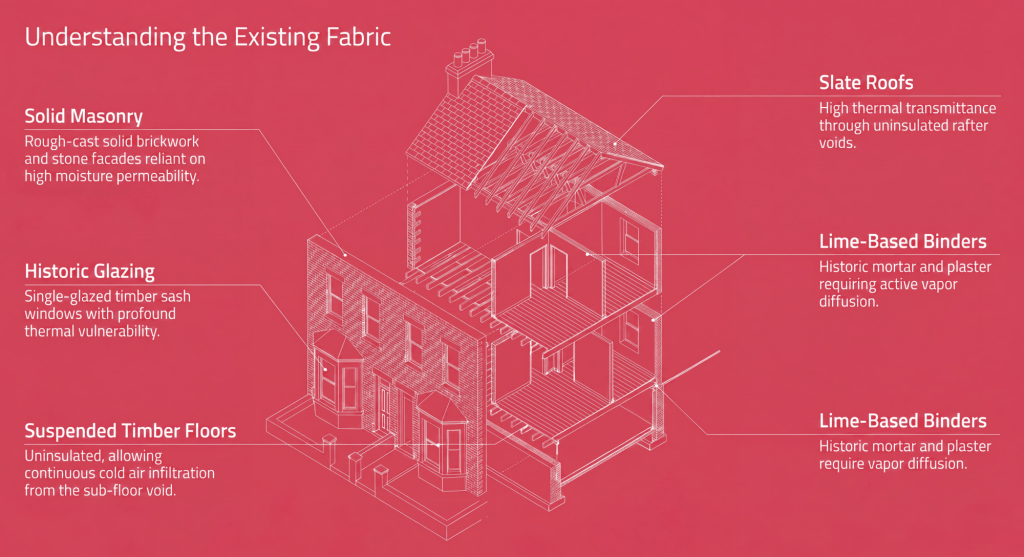

1. Understanding the Anatomy of Period Construction
To successfully retrofit a pre-1919 building, one must approach it as a complex environmental filter. Unlike modern cavity-wall construction, which relies on impermeable barriers, traditional Bristolian homes function through a vapour-permeable, or “breathable,” methodology.
- Solid Masonry Walls: Constructed of solid brick or stone, these walls possess significant thermal mass and manage moisture through a cycle of absorption and evaporation.
- Lime Mortars and Plasters: These traditional materials are inherently vapour-permeable, allowing moisture to migrate through the wall rather than becoming trapped.
- Hygroscopic Health: Suspended timber floors provide a natural void that facilitates airflow, which is essential for maintaining the equilibrium of moisture within the floor joists.
Because these buildings rely on this delicate equilibrium, the introduction of modern, impermeable materials, such as cement renders or plastic membranes, represents a significant risk to the longevity of the heritage fabric.
2. The Risks of Inappropriate Intervention
Applying modern, non-breathable building techniques to historic fabrics often results in unintended consequences that accelerate structural decay.
- The Dew Point Shift: When we apply insulation to a solid wall, the original masonry remains colder because it is no longer warmed by escaping internal energy. If impermeable materials are used, internal vapour can become trapped within the wall, leading to interstitial condensation.
- Thermal Bridging: These occur at junctions where insulation is bypassed or reduced, acting as conduits for heat loss and creating cold spots on internal surfaces. In a typical un-retrofitted house, heat loss through thermal bridges can reach 15 kWh/m²yr, accounting for up to 25% of internal heat loss.
- Timber Decay: Moisture accumulation risks the rot of embedded timber joist ends and the freeze-thaw degradation of external brickwork.
3. The Fabric First Methodology: Breathable Insulation
A Fabric First philosophy prioritises the building’s thermal envelope before any energy efficiency systems are considered. For a typical Bristol terrace, this requires a complex negotiation between heritage preservation and physical performance.
In conservation areas where the external aesthetic must remain untouched, Internal Wall Insulation (IWI) is often the primary strategy. A breathable retrofit prioritises vapour-open systems. We frequently specify materials such as wood fibre insulation and lime-based plasters; they possess the capacity to buffer humidity, safely absorbing excess moisture and releasing it when atmospheric conditions allow.
A highly effective hybrid approach involves using IWI on the protected street frontage, whilst applying External Wall Insulation (EWI) to the rear elevations. This provides superior thermal continuity where planning constraints are less restrictive.
4. Airtightness and Controlled Ventilation
Insulation is only as effective as the airtightness of the envelope. Without a rigorous airtightness strategy, heat is lost through draughts; without controlled ventilation, the building becomes stuffy and moisture-laden. The mandate is always: “Build tight, ventilate right.”
When airtightness improves to levels below 3 m³/(m²h), natural infiltration is no longer sufficient. At this threshold, Mechanical Ventilation is essential. For improved efficiency MVHR extracts stale air from wet rooms and uses it to pre-heat fresh, filtered air supplied to living spaces. This maintains CO2 concentrations below 1000 ppm and regulates relative humidity between 40–60%, entirely removing the risk of surface condensation.
5. Achieving the Standard: Passivhaus EnerPHit
For the most discerning homeowners and forward-thinking developers, the Passivhaus EnerPHit standard represents the ultimate benchmark for a deep retrofit. Rather than just making “best-effort” improvements, EnerPHit guarantees performance, fundamentally transforming how a historic property feels and operates.
What This Means for the Homeowner While the underlying building physics are complex, the tangible benefits of reaching these advanced standards are incredibly straightforward:
- Extreme Comfort: Achieving a stringent airtightness target (less than 1.0 Air Changes per Hour) essentially means draughts are completely eliminated. The home maintains a stable, even temperature of 20–24ºC in every room, year-round.
- Drastically Lower Heating Bills: The EnerPHit standard demands a “Space Heat Demand” of 25 kWh/m²yr or less. In practical terms, this translates to an 80% to 85% reduction in the energy required to heat your home compared to a typical uninsulated Victorian terrace.
- Future-Proofing: By meeting aggressive CO2 emission targets (dropping from around 79 kg/m²/year to roughly 18 kg/m²/year), your property is protected against future energy price shocks and increasingly strict environmental regulations.
Performance Pathways at a Glance Rather than a rigid pass/fail approach, we guide clients through a spectrum of technical standards based on their specific budget and the physical constraints of their heritage fabric:
- AECB Silver: A highly practical, high-performance upgrade that reduces space heating demand to 40 kWh/m²yr. This is an excellent middle ground for significant thermal improvements.
- EnerPHit (The Gold Standard): The Passivhaus standard tailored specifically for existing buildings. It acknowledges the challenges of fixed orientations and historic facades, while still mandating exceptional insulation and near-zero heat loss.
For many Bristolian properties, EnerPHit represents the pinnacle of achievable performance. It perfectly balances radical energy reduction with the sensitive preservation of our city’s architectural heritage.
6. Envelope Continuity and Human-Centric Design
The most significant vulnerabilities in the thermal envelope are the points where components puncture the airtightness layer.
- Heritage Windows: Traditional sashes can be replaced with bespoke units such as a traditional double-glazed sash on the external line or an internal double-glazed casement on the insulation line, targeting exceptional U-values of 0.8 W/m²K without compromising the streetscape.
- Roof and Floor Continuity: We create warm roofs by insulating at the rafter level. Suspended floors are insulated between joists with breathable quilts, eliminating the cold draughts associated with period homes.
By pairing a high-performance fabric with carefully considered biophilic elements, such as optimising natural light through strategic rooflights, we foster a strong connection to the environment, ultimately enhancing occupant wellbeing.
Retrofit as Architectural Stewardship
High-performance retrofitting is a profound act of stewardship. By upgrading the architectural legacy of Bristol, we ensure these homes remain viable and comfortable for the next century. The transition from uninsulated masonry to a high-performance envelope allows for stable internal temperatures of 20–24ºC, drastically reducing energy demand while protecting the building’s resilience.
The role of the architectural professional is to guide the client through the complex interplay of moisture management, thermal continuity, and structural integrity. By applying technical rigour and a deep respect for traditional materials, we transform historic assets into resilient, low-carbon homes that honour their history whilst securing their future.
